Solar water heater

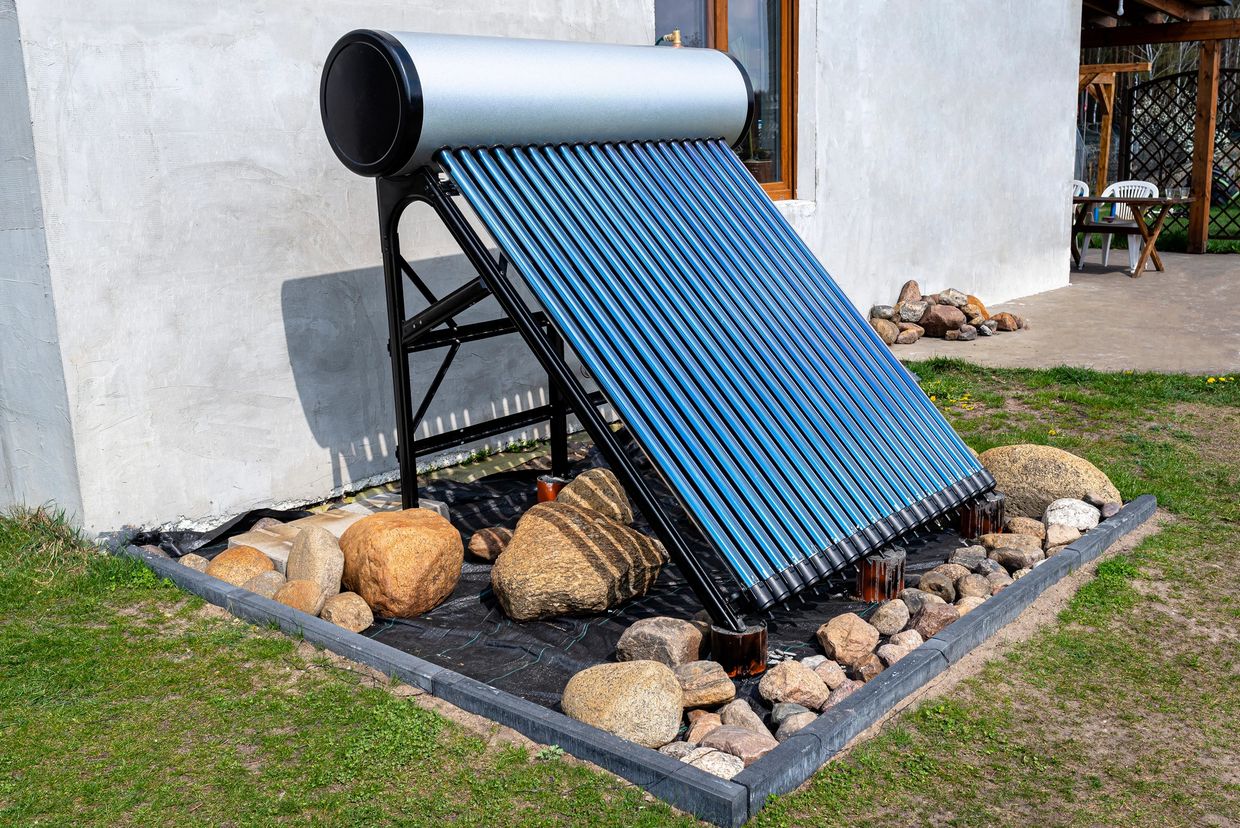

 Evacuated Tube Collector (ETC) solar water heaters use a series of vacuum-sealed glass tubes to efficiently convert sunlight into heat, providing a highly efficient and durable method for heating water in both residential and commercial applications.

How an ETC Solar Water Heater WorksThe key to the ETC system's efficiency is the vacuum insulation within its tubes.

1. Absorption: The system uses long, parallel double-layer borosilicate glass tubes. The outer wall of the inner tube is coated with a selective absorbent material that maximizes the absorption of solar radiation.
2. Insulation: A vacuum is created in the space between the inner and outer glass tubes. This vacuum is an excellent insulator, drastically reducing heat loss due to convection and conduction to the outside environment.
3. Heat Transfer: Inside the inner tube is a copper pipe (heat pipe) with a heat transfer fluid. The absorbed solar energy heats this fluid, causing it to vaporize and rise to the top.
4. Heat Exchange: At the top, the vapor reaches a manifold (heat exchanger) in the insulated storage tank, where it releases its heat to the water. The fluid then cools, condenses back into a liquid, and flows back down the pipe to repeat the cycle.
5. Storage: The heated water is stored in an insulated tank, which retains the high temperature for use at any time, including at night or on cloudy days.

Key Features and Benefits

• High Efficiency: ETC systems perform effectively even in cold or cloudy conditions due to minimal heat loss, making them a suitable choice for northern regions.
• Cost-Effective & Eco-Friendly: By using free solar energy, they can reduce electricity bills by up to 80% and prevent significant CO2 emissions.
• Durable & Low Maintenance: Made with robust materials like food-grade stainless steel for the inner tank and strong glass tubes, they are generally rust-proof and require minimal maintenance. The individual tubes are also easy to replace if damaged.
• Smart Technology (Modern Advancements): Recent innovations incorporate Artificial Intelligence (AI) and Internet of Things (IoT) capabilities for enhanced efficiency. These smart systems can:
  • Learn user water usage patterns to preheat water automatically.
  • Integrate with smart home systems (like Alexa or Google Home) for remote monitoring and control.
  • Provide real-time data and maintenance alerts via mobile apps.
